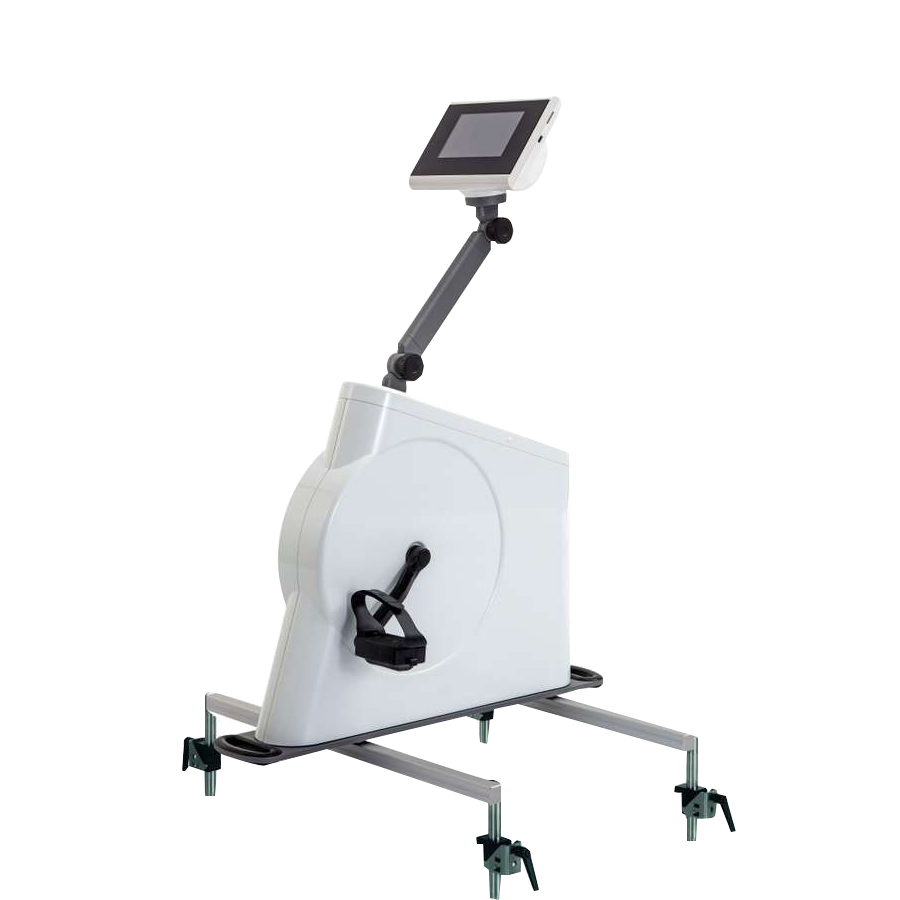

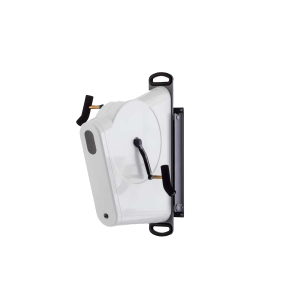

Angio rehab – with Fixation Set for Instrument Rail

Angio rehab – with Fixation Set for Instrument Rail

Modern ergometer with multifunctional applications

In this system, the Angio is supplied with a multifunctional fixation set. With this set, the Angio ergometer is equipped with pedal shoes and can be mounted easily on all Imaging / Physiotherapy / Examination tables that have a standard instrument side rail of 25×10 mm. The adjustability range is 625 – 903 mm (width) and 20-120 mm (height). *

The Angio rehab is standard supplied with a 7″ control unit with touch screen. Thanks to the built-in network module, the ergometer can be connected to the Lode Cardiac Rehab Manager Software, Lode Rehab Manager or the Lode Ergometry Manager.

A USB A-B cable for service purposes only will be standard delivered with the product. To connect LEM or LCRM you need a special interface cable that can be ordered under part number 930930.

Note: always check the width of the examination table on wich the ergometer is going to be installed. There is a fixaton set available for tables that are smaller (#967820)
During the Ergometry Test (LEM 10)



SKU: 2-Rehab Category:

Overview

High standards

Lode is a socially and environmentally responsible company. All Lode products are RoHS/WEE compliant and Lode is ISO 9001:2015, ISO and 13485:2016 certified. All medical products comply to MDD 93/42/EEC, incl. IEC 60601-1.

Reliable and reproducible stress tests

The experience of professionals who calibrate many ergometers showed that the Lode ergometers are the most reliable across the complete workload and rpm range and still within specifications even after many years of intensive use.

Various test modes

Besides the hyperbolic (rpm-independent) mode that is used most of the time, the standard control unit offers several other test modes, like the fixed torque mode and the linear mode.These modes can be used in both manual and terminal mode.

Multifunctional

The ergometer can be used in various ergometry settings, enabling a multifunctional deployment.

Easy to clean

The design of the ergometer and the housing material make it very easy to clean.

Features

Extreme low start up load

The extreme low start-up load of 7 watts and the adjustability in small steps of 1 watt make this ergometer perfectly suitable for many different applications. The standard control unit shows multiple ergometry parameters and you can determine your specific default setting and start-up menu.

Accurate over a long period of time

The Lode ergometers are supplied with an electro-magnetic braking mechanism of Lanooy (eddy current). The biggest advantage of this braking system compared to a friction braking system is the absolute accuracy and the accuracy over time. Moreover, friction braking systems have more wearing parts.

Small adjustment steps

The workload of the Lode ergometers is adjustable in steps of only 1 watt. Depending on your wishes, the test operator or the test subject can adjust the workload. The steps of 1 watt are possible in the manual mode as well as within protocols.

RS232 connectivity

RS232 ports enable connectivity to most ECG and ergospirometry devices as well as PC’s.

LEM compatible

This product can be used with Lode Ergometry Manager (LEM) software to manage data and to apply specific protocols when a Communication card or Network card is present

LCRM compatible

This product can be used with Lode Cardiac Rehabilitation Manager software (LCRM)

Versatile controls

Additional features with PCU

Besides the possibility to program 24 protocols easily, this control unit offers the following features:
– better monitoring because of the additional and larger display
– a perfect combination with BPM
– possibility to measure SpO2

Versatile Interfacing

Various interface protocols guarantee perfect communication with all commonly known stress ECG and spirometry equipment

Specifications

Workload
Workload range fixed torque 0,1 - 70 Nm Workload range in fixed torque mode
Minimum load 7 W the minimum load the ergometer can provide
Maximum peak load 1000 W the maximum load the ergometer can provide for a short period of time
Minimum load increments 1 W the smallest steps with which the load can be added
Maximum continuous load 750 W the maximum power the ergometer can deliver continuous
Hyperbolic workload control
control of workload in hyperbolic way
Linear workload control
control ergometer in a linear way
Fixed torque workload control
control ergometer in a fixed torque way
Maximum rpm independent constant load 150 rpm rpm as to which constant load can be applied
Minimum rpm independent constant load 30 rpm rpm as from which constant load can be applied
Optional heart rate controlled workload
control the device optionally through a set heartrate
Electromagnetic "eddy current" braking system
system that very accurately applies a brake to the ergometer
Dynamic calibration
continuous calibration during application of workload
Accuracy
Workload accuracy from 7 to 100 W 3 W accuracy of the ergometer between 7 and 100 Watt
Workload accuracy from 100 to 500 W 3 % accuracy of the ergometer between 100 and 500 Watt
Workload accuracy from 500 to 1000 W 5 % accuracy of the ergometer between 500 and 1000 Watt
Comfort
Adjustability range height 20 - 120 mm adjustability range height
Adjustability range width 625 - 903 mm 24.6 kJ adjustability range width
Pedal shoes
premounted pedal shoes
User Interface
Readout Distance
Readout the distance on control unit
Readout RPM
Readout the actual rpm on control unit
Readout Heartrate
Readout the actual heartarte on control unit
Readout target HR
Readout target heartarte on control unit (only possible with HR option)
Readout Energy
Readout the energy on control unit
Readout Torque
Readout torque on control unit
Readout Time
Readout time on control unit
Readout Power
Readout the actual power on control unit
Set Display
Choosing parameters to be shown on the display during the stress test
Set Resistance
Possibility to define a specific resistance for each test subject
Set P-Slope
Possibility to set the load regulation resistance
Set Mode
Possibility to define parameters to be adjusted during the stress test
Manual operation mode
Operate manually
Preset protocol operation mode
Operate via preset protocols
Analog operation mode
operate analog
Terminal operation mode
operate with an external device
External control unit
a control unit is connected with a cable to the ergometer
Selfdesigned protocol operation mode
operate via selfdesigned protocols
Dimensions
Maximum table width 920 mm 36.2 inch maximum distance between the outside of the instrument rails on a patient table
Minimum table width 580 mm 22.8 inch minimum distance between the outside of the instrument rails on a patient table
Product length (cm) 54 cm 21.3 inch length of product in cm
Product width (cm) 68 cm 26.8 inch width of the product in cm
Product height 73 cm 28.7 inch height of product
Product weight 40 kg 88.2 lbs the weight of the product
Power Requirements
V AC 100 - 240 V voltage in Volt
Phases 1 phases
Frequency 50/60 Hz frequency in Herz
Power consumption 160 W power consumption in Watt
Power cord IEC 60320 C13 with CEE 7/7 plug
European power cord and connector standard supplied with product
Power cord NEMA
NEMA power cord and connector
Standards & Safety
IEC 60601-1:2012
the product is IEC 60601-1 edition 3.1 compliant
ISO 13485:2016 compliant
Lode fulfils ISO 13485:2016 requirements
ISO 9001:2015 compliant
Lode fulfills ISO 9001: 2015 requirements
Certification
CE class Im according to MDD93/42/EEC
CE certified
CE class of product with optional SpO2 IIa CE class of product with optional SpO2
CE class of product with optional BPM IIa CE class of product with optional Blood Pressure Measurement
CB according to IECEE CB
CB certified
Environmental conditions
Maximum operational temperature 35 °C maximum temperature at which the device will work within specification
Minimum operational temperature 14 °C minimum temperature at which the device will work within specification
Maximum operational air pressure 106 kPa maximum air pressure as from which the product will be operating within specification
Minimum operational air pressure 80 kPa minimum airpressure as from which the product will be operating within specification
Maximum operational non-condensing humidity 90 % maximum non-condensing humidity at which the product will operate within specification
Minimum operational non-condensing humidity 30 % minimum non-condensing humidity at which the product will operate within specification
Maximum storage & transport temperature 60 °C maximum temperature the product may be stored or transported at
Minimum storage & transport temperature -20 °C minimum temperature the product may be stored and transported at
Maximum storage & transport air pressure 106 kPa maximum air pressure the product may be stored and transported at
Minimum air pressure storage & transport 50 kPa minimum air pressure the product may be stored or transported at
Max. humidity storage & transport 95 % max. non-condensing humidity that the product can be stored or transported at
Min. humidity storage & transport 10 % minimum non-condensing humidity that the product can be stored or transport at
*Specifications are subject to change without notice.

Accessories

[sg_popup id=”5155″ event=”inherit”][/sg_popup]

Science

Science

  • Arm exercise stress testing: diagnostic options in stable coronary artery disease
  • Diagnosis of Functionally Significant Coronary Stenosis with Exercise CT Myocardial Perfusion Imaging
  • Experimental Protocol of a Three-minute, All-out Arm Crank Exercise Test in Spinal-cord Injured and Able-bodied Individuals (video article)
  • Impact of Percutaneous Revascularization on Exercise Hemodynamics in Patients With Stable Coronary Disease
  • The effects of arm crank ergometry, cycle ergometry and treadmill walking on postural sway in healthy older females.
  • Validity and Reliability of Skill-Related Fitness Tests for Wheelchair-Using Youth With Spina Bifida.

Support

Q - Is it possible to request RPM and Load data through the RS232 port while cycling in Manual mode.

Yes you can request the actual pedalling speed and power when you are cycling in Manual, Analogue or Terminal mode.
The load will only be returned when the pedalling speed is 30 RPM or more. For technical details see the Lode RS232 protocol

Q - To which size instrument rail can an Angio with fixation set be fixed?
Q - Can I use a RS232 to USB converter to connect an ergometer?

Yes you can. Make sure the chipset used in the converter is from FTDI to have good data acquisition.
Not sure what this means? Contact us and we will help you to get the right converter.

Q - Can I loop Lode rehab products easily?

Yes! It is very easy to create a comfortable rehab setting with Lode rehab products by looping the ergometers:

The first Lode rehab ergometer can be connected to the PC with LCRM with a Lode proprietary network to PC cable (#930930).
The second product up till the last product can be connected to the previous one, a bus network configuration.

The last product always needs a termination plug to avoid interference and loss of data. All Lode rehab products come standard with such a termination plug.

Benefits
- Flawless data connection
- High bandwidth
- No interference of COM ports
- Looping
- Full access of all data in the product to LCRM

Q - What are the shoe sizes belonging to the various pedal shoes?

You can calculate with the following sizes:

Pedal shoe pediatric:
EU: 24 - 31
US: 8 - 13.5
UK: 6.5 - 12

Pedal shoe (default):
EU: 32 - 41
US male: 1 - 8
US female: 1 - 9
UK: 12.5 (child) - 7.5 (adult)

Pedal shoe XL:
EU: 42 - 48
US male: 8.5 - 13.5
US female: 9.5 - 13
UK: 8 - 13

Service

Part number

967925
