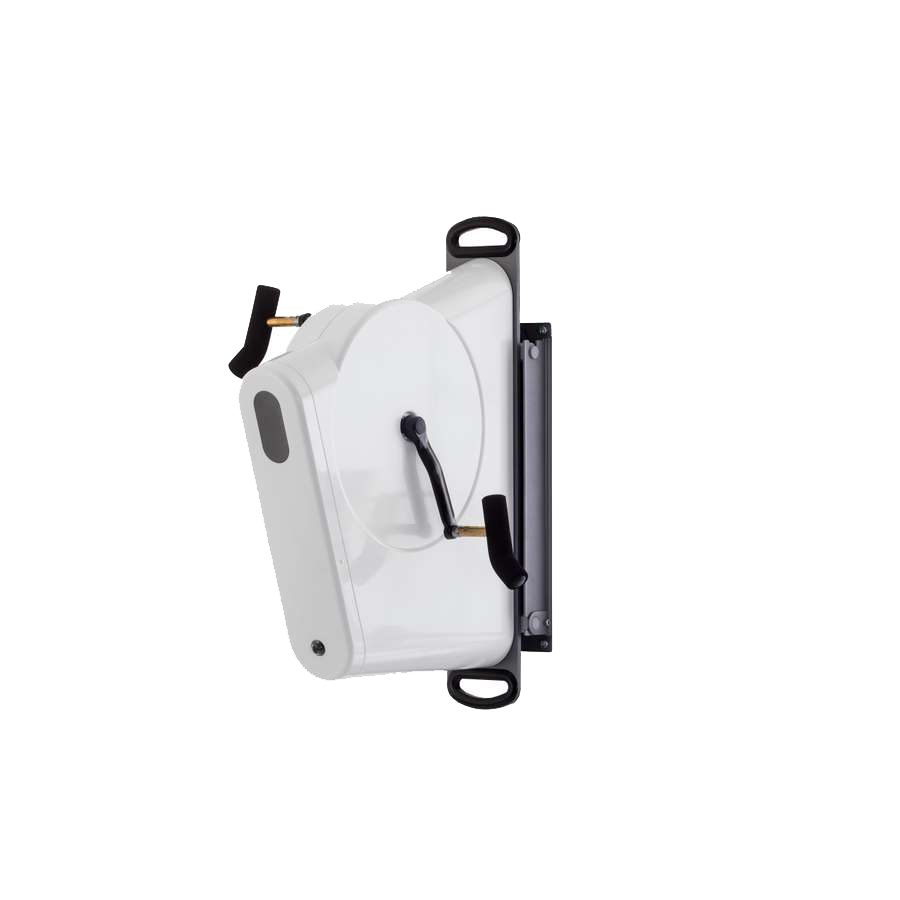

Angio Rehab – With Static Wall Fixation

Angio Rehab – With Static Wall Fixation

Modern ergometer with multifunctional applications
In this system, the Angio is fixed to the wall. Handgrips are standard included. The Angio is an ergometric unit that can be used for both arm and supine ergometry. Its compact design makes it universally applicable for ergometric studies in those sectors in which standard ergometry cannot be used. The Angio operates independent of pedaling speed in the range of 7 – 1000 watt.The Angio rehab is standard supplied with a 7″ control unit with touch screen. Thanks to the built-in network module, the ergometer can be connected to the Lode Cardiac Rehab Manager Software, Lode Rehab Manager or the Lode Ergometry Manager.
Interconnectivity between Lode products

SKU: 10-Rehab Category:

Overview

Highlights

High standards

Lode is a socially and environmentally responsible company. All Lode products are RoHS/WEE compliant and Lode is ISO 9001:2015, ISO and 13485:2016 certified. All medical products comply to MDD 93/42/EEC, incl. IEC 60601-1.

Easy to operate

For Lode products this means:
– easy to connect
– easy to move around
– easy user interface

Reliable and reproducible stress tests

The experience of professionals who calibrate many ergometers shows that the Lode ergometers are the most reliable across the complete workload and rpm range and still within specifications even after many years of intensive use.

Additional features with PCU

Besides the possibility to program 24 protocols easily, this control unit offers the following features:
– better monitoring because of the additional and larger display
– a perfect combination with BPM
– possibility to measure SpO2

Features

Accurate over a long period of time

The Lode ergometers are supplied with an electro-magnetic braking mechanism of Lanooy (eddy current). The biggest advantage of this braking system compared to a friction braking system is the absolute accuracy and the accuracy over time. Moreover, friction braking systems have more wearing parts.

Extreme low start-up load

The extreme low start-up load of 7 watts and the adjustability in small steps of 1 watt make this ergometer perfectly suitable for many different applications. The standard control unit shows multiple ergometry parameters and you can determine your specific default setting and start-up menu.

Small adjustment steps

The workload of the Lode ergometers is adjustable in steps of only 1 watt. Depending on your wishes, the test operator or the test subject can adjust the workload. The steps of 1 watt are possible in the manual mode as well as within protocols.

RS232 connectivity

RS232 ports enable connectivity to most ECG and ergospirometry devices as well as PC’s.

Versatile Interfacing

Various interface protocols guarantee perfect communication with all commonly known stress ECG and spirometry equipment

Specifications

Workload
Workload range fixed torque 0,1 - 70 Nm Workload range in fixed torque mode
Minimum load 7 W the minimum load the ergometer can provide
Maximum peak load 1000 W the maximum load the ergometer can provide for a short period of time
Minimum load increments 1 W the smallest steps with which the load can be added
Maximum continuous load 750 W the maximum power the ergometer can deliver continuous
Hyperbolic workload control
control of workload in hyperbolic way
Linear workload control
control ergometer in a linear way
Fixed torque workload control
control ergometer in a fixed torque way
Maximum rpm independent constant load 150 rpm rpm as to which constant load can be applied
Minimum rpm independent constant load 30 rpm rpm as from which constant load can be applied
Optional heart rate controlled workload
control the device optionally through a set heartrate
Electromagnetic "eddy current" braking system
system that very accurately applies a brake to the ergometer
Accuracy
Workload accuracy from 7 to 100 W 3 W accuracy of the ergometer between 7 and 100 Watt
Workload accuracy from 100 to 500 W 3 % accuracy of the ergometer between 100 and 500 Watt
Workload accuracy from 500 to 1000 W 5 % accuracy of the ergometer between 500 and 1000 Watt
Comfort
Adjustability range height 20 - 120 mm adjustability range height
Adjustability range width 625 - 903 mm 24.6 kJ adjustability range width
Pedal shoes
premounted pedal shoes
User Interface
Readout Distance
Readout the distance on control unit
Readout RPM
Readout the actual rpm on control unit
Readout Heartrate
Readout the actual heartarte on control unit
Readout target HR
Readout target heartarte on control unit (only possible with HR option)
Readout Energy
Readout the energy on control unit
Readout Torque
Readout torque on control unit
Readout Time
Readout time on control unit
Readout Power
Readout the actual power on control unit
Set Display
Choosing parameters to be shown on the display during the stress test
Set Resistance
Possibility to define a specific resistance for each test subject
Set P-Slope
Possibility to set the load regulation resistance
Set Mode
Possibility to define parameters to be adjusted during the stress test
Manual operation mode
Operate manually
Preset protocol operation mode
Operate via preset protocols
External control unit
a control unit is connected with a cable to the ergometer
Selfdesigned protocol operation mode
operate via selfdesigned protocols
Dimensions
Product length (cm) 54 cm 21.3 inch length of product in cm
Product width (cm) 68 cm 26.8 inch width of the product in cm
Product height 73 cm 28.7 inch height of product
Product weight 55 kg 121.3 lbs the weight of the product
Power requirements
V AC 100 - 240 V voltage in Volt
Phases 1 phases
Frequency 50/60 Hz frequency in Herz
Power consumption 160 W power consumption in Watt
Power cord IEC 60320 C13 with CEE 7/7 plug
European power cord and connector standard supplied with product
Power cord NEMA
NEMA power cord and connector
100 - 240 V 50/60 Hz (160 Watt)
operational power
Standards & Safety
IEC 60601-1:2012
the product is IEC 60601-1 edition 3.1 compliant
ISO 13485:2016 compliant
Lode fulfils ISO 13485:2016 requirements
ISO 9001:2015 compliant
Lode fulfills ISO 9001: 2015 requirements
Certification
CE class Im according to MDD93/42/EEC
CE certified
CE class of product with optional SpO2 IIa CE class of product with optional SpO2
CE class of product with optional BPM IIa CE class of product with optional Blood Pressure Measurement
CB according to IECEE CB
CB certified
Environmental conditions
Maximum operational temperature 35 °C maximum temperature at which the device will work within specification
Minimum operational temperature 14 °C minimum temperature at which the device will work within specification
Maximum operational air pressure 106 kPa maximum air pressure as from which the product will be operating within specification
Minimum operational air pressure 80 kPa minimum airpressure as from which the product will be operating within specification
Maximum operational non-condensing humidity 90 % maximum non-condensing humidity at which the product will operate within specification
Minimum operational non-condensing humidity 30 % minimum non-condensing humidity at which the product will operate within specification
Maximum storage & transport temperature 60 °C maximum temperature the product may be stored or transported at
Minimum storage & transport temperature -20 °C minimum temperature the product may be stored and transported at
Maximum storage & transport air pressure 106 kPa maximum air pressure the product may be stored and transported at
Minimum air pressure storage & transport 50 kPa minimum air pressure the product may be stored or transported at
Max. humidity storage & transport 95 % max. non-condensing humidity that the product can be stored or transported at
Min. humidity storage & transport 10 % minimum non-condensing humidity that the product can be stored or transport at
*Specifications are subject to change without notice.
