Corival Eccentric
Possibility to train severe cardiac and pulmonary patients with eccentric exercise
Eccentric ergometry or “negative ergometry” is used to train severe pulmonary and cardiac patients. The motor is pushing the crank axle of the ergometer in the opposite direction. The test subject has to resist this workload and keep the pedal frequency at a selected number to get the desired training effect.

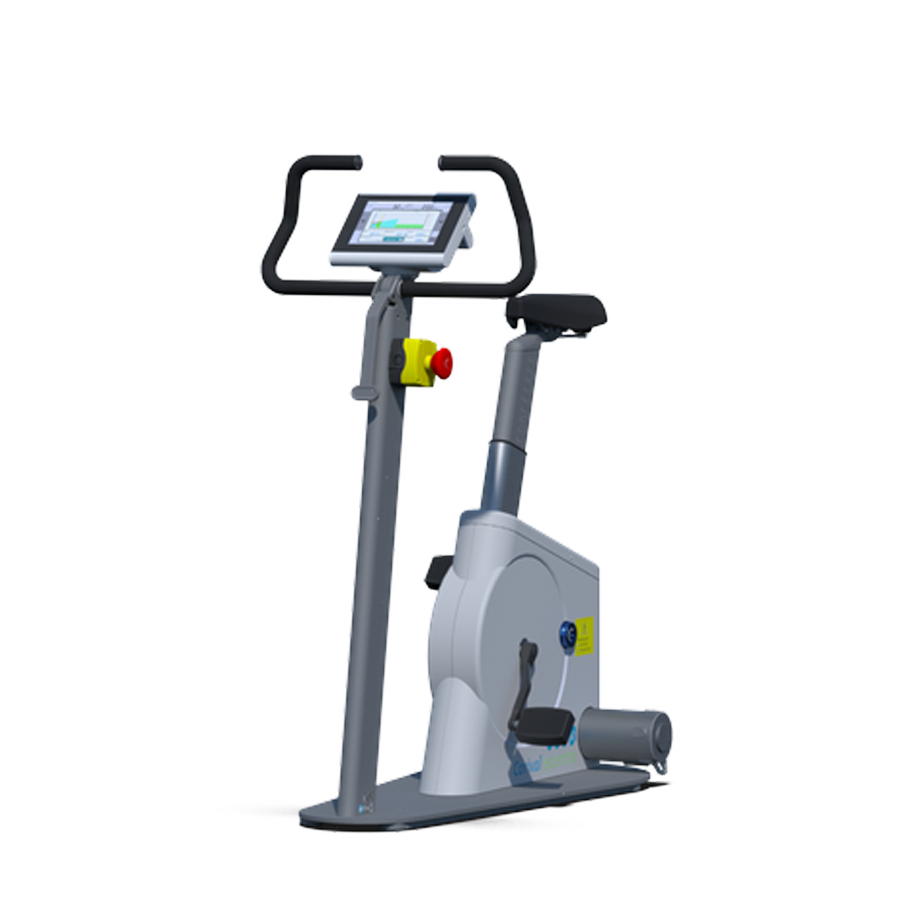

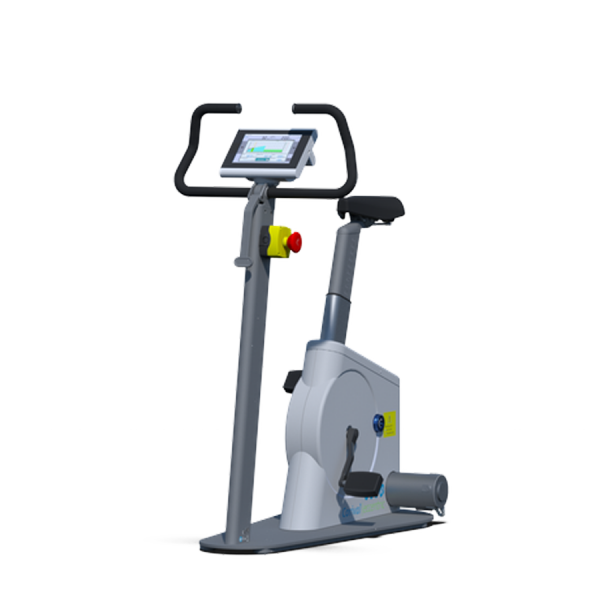

The Eccentric Corival is an ergometer with a design like the Corival with a motor next to the usual electromagnetical braking principle. The maximal eccentric workload is 250 watt. The range of target rpm (30-100 rpm) can be customized and adjusted during the training. The eccentric ergometer has safety protections but may not be used without supervision. Besides this eccentric ergometry, this ergometer can be used for normal ergometry as well.
The ergometer is standard equipped with both a 7″ programmable control unit and a 3,5″ display.
Overview
Highlights
Reliable and reproducible stress tests
High standards
Various test modes
Q-factor equal to road-bike
Training severe cardiac and pulmonary patients
Features
Compatible with ECG and pulmonary devices
Extreme low start up load
Low noise
Accurate over a long period of time
RS232 connectivity
Readout out of saddle height
Perfect ergonomic position
Ultra-low step-through
USB connectivity
Small adjustment steps
Specifications
Minimum load | 10 W | the minimum load the ergometer can provide | |
Maximum peak load | 1000 W | the maximum load the ergometer can provide for a short period of time | |
Minimum load increments | 1 W | the smallest steps with which the load can be added | |
Maximum continuous load | 750 W | the maximum power the ergometer can deliver continuous | |
Hyperbolic workload control | control of workload in hyperbolic way | ||
Linear workload control | control ergometer in a linear way | ||
Fixed torque workload control | control ergometer in a fixed torque way | ||
Maximum rpm independent constant load | 150 rpm | rpm as to which constant load can be applied | |
Minimum rpm independent constant load | 30 rpm | rpm as from which constant load can be applied | |
Optional heart rate controlled workload | control the device optionally through a set heartrate | ||
Electromagnetic "eddy current" braking system | system that very accurately applies a brake to the ergometer | ||
Dynamic calibration | continuous calibration during application of workload | ||
Power range at maximum rpm (maximum) | 1000 W | operational power range |
Minimum Eccentric Load | 0 W | Minimum eccentric load the ergometer can provide | |
Maximum Eccentric Load | 250 W | the maximum eccentric load the ergometer can provide | |
Minimum RPM Eccentric Mode | 30 rpm | Minimum rpm in the eccentric mode | |
Maximum RPM Eccentric Mode | 100 rpm | maximum rpm in the eccentric mode | |
Safety Protection | Safety protection standard on ergometer |
Workload accuracy below 100 W | 3 W | accuracy of the ergometer below 100 Watt load | |
Workload accuracy from 100 to 500 W | 3 % | accuracy of the ergometer between 100 and 500 Watt | |
Workload accuracy from 500 to 1000 W | 5 % | accuracy of the ergometer between 500 and 1000 Watt |
Q-factor | 180 mm | Q-factor | |
Minimum leg length user | 645 mm | 25.4 inch | leg length to fit to pedals |
Allowed user weight | 180 kg | 396.8 lbs | maximum patient weight |
Handlebar adjustment angle | 360 ° | angle over which the handlebar can rotate | |
Adjustability range seat | 300 mm | 11.8 inch | seat adjustment range |
English user interface | User interface available in English language | ||
Norwegian user interface | User interface available in Norwegian language | ||
Czech user interface | User interface available in Czech language | ||
Danish user interface | User interface available in Danishlanguage | ||
Dutch user interface | User interface available in Dutch language | ||
Finnish user interface | User interface available in Finnish language | ||
French user interface | User interface available in French language | ||
German user interface | User interface available in German language | ||
Italian user interface | User interface available in Italian language | ||
Japanese user interface | User interface available in language | ||
Korean user interface | User interface available in Korean language | ||
Polish user interface | User interface available in Polish language | ||
Portugese user interface | User interface available in Portugese language | ||
Russian user interface | User interface available in Russian language | ||
Spanish user interface | User interface available in Spanish language | ||
Turkish user interface | User interface available in Turkish language | ||
Ukrainian user interface | User interface available in Ukrainian language | ||
Readout RPM | Readout the actual rpm on control unit | ||
Readout Time | Readout time on control unit | ||
Readout Power | Readout the actual power on control unit | ||
Set Resistance | Possibility to define a specific resistance for each test subject | ||
Terminal operation mode | operate with an external device | ||
Touchscreen | operation by touch screen |
Lode 38K4 interface protocol | Supports communication with Lode 38K4 protocol | ||
Lode interface protocol | Supports communication according to the Lode ergometer protocol | ||
Lode WLP interface protocol | Supports communication with Lode WLP protocol | ||
Ergoline P10 interface protocol | Supports communication with Ergoline P10 protocol | ||
Ergoline P4 interface protocol | Supports communication with Ergoline P4 protocol | ||
Schiller interface protocol | Schiller-käyttöliittymäprotokolla | ||
Bosch EKG 506 DS interface protocol | Supports communication with Bosch EKG 506 DS Protokoll | ||
USB connector | connection via USB possible | ||
RS232 in connector | connection via RS232 |
Product length (cm) | 105 cm | 41.3 inch | length of product in cm |
Product width (cm) | 46 cm | 18.1 inch | width of the product in cm |
Product height | 114 cm | 44.9 inch | height of product |
Product weight | 78 kg | 172 lbs | the weight of the product |
Power cord length | 250 cm | 98.4 inch | length of powercord including plugs |
Power cord IEC 60320 C19 with CEE 7/7 plug | European power cord and connector standard supplied with product | ||
Power cord NEMA | NEMA power cord and connector | ||
Max. power consumption eccentric mode | 600 W | maximum power consumption in eccentric mode |
ISO 13485:2016 compliant | Lode fulfils ISO 13485:2016 requirements | ||
ISO 9001:2015 compliant | Lode fulfills ISO 9001: 2015 requirements |
Maximum operational temperature | 35 °C | maximum temperature at which the device will work within specification | |
Minimum operational temperature | 14 °C | minimum temperature at which the device will work within specification | |
Maximum operational air pressure | 106 kPa | maximum air pressure as from which the product will be operating within specification | |
Minimum operational air pressure | 80 kPa | minimum airpressure as from which the product will be operating within specification | |
Maximum operational non-condensing humidity | 90 % | maximum non-condensing humidity at which the product will operate within specification | |
Minimum operational non-condensing humidity | 30 % | minimum non-condensing humidity at which the product will operate within specification | |
Maximum storage & transport temperature | 60 °C | maximum temperature the product may be stored or transported at | |
Minimum storage & transport temperature | -20 °C | minimum temperature the product may be stored and transported at | |
Maximum storage & transport air pressure | 106 kPa | maximum air pressure the product may be stored and transported at | |
Minimum air pressure storage & transport | 50 kPa | minimum air pressure the product may be stored or transported at | |
Max. humidity storage & transport | 95 % | max. non-condensing humidity that the product can be stored or transported at | |
Min. humidity storage & transport | 10 % | minimum non-condensing humidity that the product can be stored or transport at |
*Specifications are subject to change without notice.
Accessories
[wcsp_cross_sell orderby=”rand” order=”ASC” product_num=”5″ display_columns=”3″ title=”” product_id=”5930″]
Science
Science
- Development of exercise-induces arm-leg blood pressure gradient and abnormal arterial compliance in patients with repaired coarctation of the aorta.
- Eccentric cycle exercise in severe COPD: feasibility of application.
- Eccentric exercise training in patients with chronic obstructive pulmonary disease
- Effects of exercise intensity on lymphocyte apoptosis induced by oxidative stress in men
- Effects of Exercise Therapy on Cardiorespiratory Fitness in Schizophrenia Patients.
- Effects of positive and negative exercise on ventilatory CO2 sensitivity
- Estimating peak oxygen uptake in adolescents with cystic fibrosis
- Exercise capacity in children with isolated congenital complete atrioventricularblock: does pacing make a difference?
- Habitual physical activity in Dutch children and adolescents with haemophilia.
- Human critical power-oxygen uptake relationship at different pedaling frequencies
- Influence of carvedilol on the benefits of physical training in patients with moderate chronic heart failure
- Muscle deoxygenation to VO2 relationship differs in young subjects with varying τVO2
- Near-infrared spectroscopy during exercise and recovery in children with juvenile Dermatomyositis.
- Respiratory Gas Exchange During Exercise in Children with Congenital Heart Disease: Methodology and Clinical Concepts.
- Role of exercise intensities in oxidized low-density lipoprotein-mediated redox status of monocyte in men
- Speeding of V̇O2 kinetics with endurance training in old and young men is associated with improved matching of local O2 delivery to muscle O2 utilization
- Supramaximal Verification of Peak Oxygen Uptake in Adolescents With Cystic Fibrosis
- The Effect of Acute Exercise on Serum Brain-Derived Neurotrophic Factor Levels and Cognitive Function
- The Steep Ramp Test in Dutch Caucasian Children and Adolescents: Age- and Sex- Related Normative Values
- The steep ramp test in healthy children and adolescents: reliability and validity.
- Time course and mechanisms of adaptations in cardiorespiratory fitness with endurance training in older and young men
- Towards an individualized protocol for workload increments in cardiopulmonary exercise testing in children and adolescents with cystic fibrosis.
- Validity of the oxygen uptake efficiency slope in children with cystic fibrosis and mild-to-moderate airflow obstruction.
- Ventilatory response to positive and negative work in patients with chronic obstructive pulmonary disease
Support
The Corival handlebar is adjustable within 0-360 degrees.
The Excalibur Sport's handlebar is adjustable in both vertical (465- 855 mm) and horizontal (229- 600 mm) direction.
This is possible for all ergometers from 2004 on. Since 2009 it is possible to create yourn own calculation by using the adjustable resistance. Note: both pedalling speed and workload are taken into account by estimating the travelled distance.
During Eccentric or negative ergometry you have to resist against a workload produced by a motor instead of an electromagnet, see article prof. Folgering: Effects of positive and negative exercise on ventilatory CO2 sensitivity.
Yes, you can find interface sheets for most common devices on the website at the "service" tab of this website. If your device is not present you can ask us to support you. In most cases we can quickly provide you with a solution.
The HR option is the well known Polar* heart rate receiver. The receiver is integrated in the software of the controller. The test subject has to wear the heart rate belt around the chest. The receiver is placed in front of the test subject (or integrated in the controller in case of a Corival) and the HR data will be displayed on the controller of the ergometer
During heartrate controlled cycling or running, you can determine a maximum heartrate limit. When this limit is reached, the ergometer/treadmill will adjust the workload/speed so the heartrate will stay more or less stable. You can perform a HR controlled test with the standard controller. You can program HR controlled protocols with the controller of the Valiant, Corival, Angio and Excalibur (more heartrate limits in one protocol (per step)), and the LEM (multi control) software module.
The 0-Watt start-up system is an option for the Corival and Excalibur ergometers. It offers the opportunity to start the ergometer at a preset pedal speed (30-80 rpm). The number of revolutions is increased from 0 to the desired rpm by means of a motor drive. With this option there is no energy-loss for the test subject due to the start-up phase. The motor has to be built-in in the ergometer during manufacturing. Example: before starting the test the ergometer must be set at the lowest workload (7 watt), or a protocol must be selected with a first step of 7 Watt (max 10 Watt). When pushing the 0-watt button, the number of revolutions is increased to the required pedal speed. Release the button and the ergometer will have a workload of 7 watt. The test subject does not have to overcome the initial resistance of the braking mechanism and can start the test with the lowest workload at the required rpm in the normal rpm-independent mode.
Yes, before purchasing, you can order or it can be changed by a service engineer.
Yes the SpO2 results are visible during the rehab session.
The Q factor of a bicycle ergometer is the distance from crank to crank. For the Excalibur the Q factor is simular to a racing bike meaning 147mm (+/- 3 mm).
Service
Part number 960905
