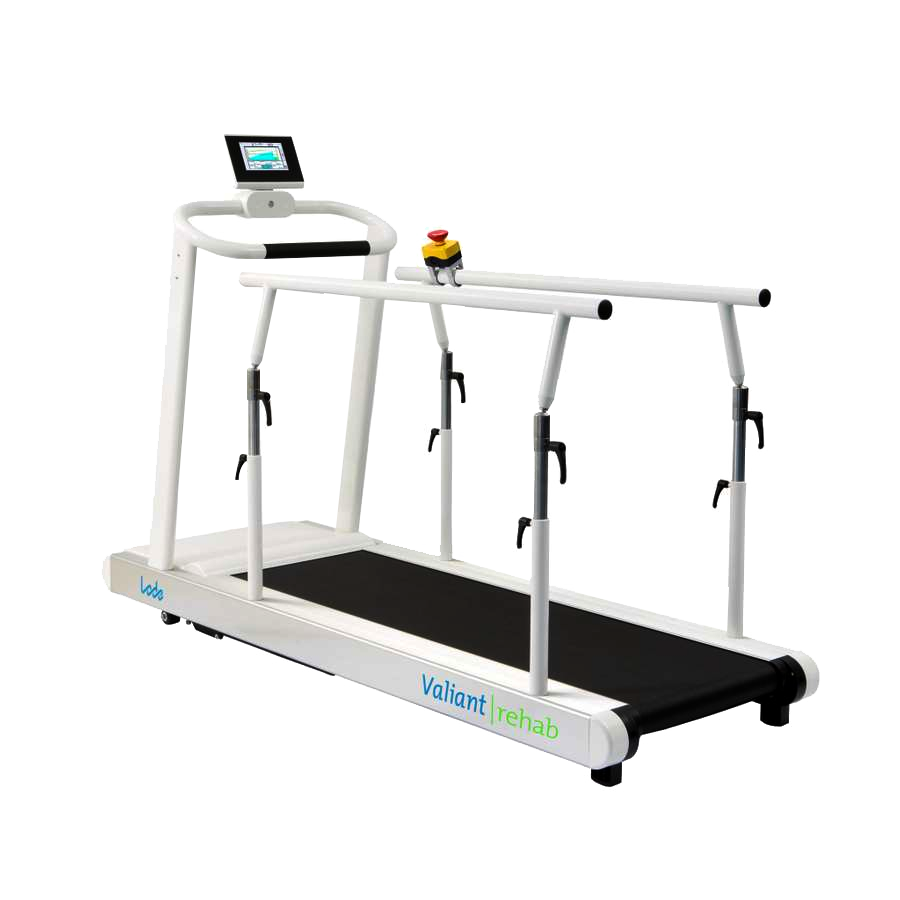

Valiant 2 Rehab XL

Valiant 2 Rehab XL

Robust and reliable treadmill for rehabilitation
Modern designed treadmill specifically designed for rehabilitation. The low step-up height makes the treadmill perfectly suitable for all test subjects in the field of rehabilitation. The emergency stop with magnetic lanyard on the standard front handrail provides additional safety for the user. The Valiant 2 rehab offers a smooth acceleration from 0 km/h and is continuously adjustable in a range of 0,1 – 12 km/h (0.06 – 7.5 mph). The included network module provides control within a Lode software network (LEM, LRM or LCRM). Thanks to the unique low design of the cover plate it is possible to place a mirror or camera in front of the treadmill which makes it easier to monitor the gait of the test subject. The Valiant 2 rehab has a standard running surface of 50 x 150 cm and 0-25% elevation. The treadmill is equipped with a 7″ control unit with Touchscreen for manual control.
A USB A-B cable only for service purposes will be standard delivered with the product.
To connect LEM, LRM or LCRM you need a special interface cable that can be ordered under part number 930930.
During the Ergometry Test (LEM 10)



SKU: 6-Rehab Category:

Overview

Highlights

High standards

Lode is a socially and environmentally responsible company. All Lode products are RoHS/WEE compliant and Lode is ISO 9001:2015, and ISO 13485:2016 certified. All medical products comply to MDD 93/42/EEC, incl. IEC 60601-1.

Various handrails available

Various handrails are optional available, making the treadmill suitable for your specific stress test setting.

Smooth acceleration

All treadmills have a smooth acceleration from 0 km/h to the start speed.

Extremely accurate

The treadmill is extremely accurate in its speed and angle settings

Patient friendly treadmill

The treadmill offers ultimate comfort for the patient:
– low step-up height
– faultless operation
– smooth acceleration
– reliable and reproducible test results
– low noise

Features

Low noise

Material choices, refined components and accurate manufacturing techniques lead to low noise.

Extreme low step-up height

To allow people to safely and comfortably step up the treadmill it is important to have a very low step-up height

Small adjustment steps

The speed of the treadmill can be adjusted in the smallest steps of only 0.1 km/h!

Low plate

Low cover plate

The motor compartment of the treadmill is designed in such a way that the cover is only marginally higher than the belt surface. This allows for low camera positions in case the treadmill is used for gait analysis purposes. Also a therapist has the best possible view on feet and lower extremities.

Robust design

The product is designed to withstand continuous heavy use by subjects in most weights and sizes.

Downhill walking as an option (-10%)

This treadmill can be executed with 10% negative elevation. This allows for downhill walking which is extremely useful for rehabilitation of certain injuries.

Optional integrated BPM and SpO2

The treadmill can be extended with a stable and reliable blood pressure module and SpO2 measurement.

LCRM compatible

This treadmill can be connected to the Lode Cardiac Rehab manager offering a complete cardiac rehab setting

Specifications

Workload
Maximum speed 12 km/h 7.5 mph maximum speed of the treadmill
Minimum operational speed 0.1 km/h 0.1 mph minimum speed of the treadmill
Speed adjustment steps 0.1 km/h 0.1 mph the steps you can adjust the speed with
Positive elevation 25 % maximum positive angle as a percentage
Elevation adjustment steps 0.5 % the size of the steps you can adjust the elevation
Optional negative elevation -10 % mimimum negative angle percentage that can be reached with the optional accessory
Accuracy
Speed accuracy 5 % accuracy of speed
Accuracy inclination 0,5 % Accuray of the inclination
Comfort
Allowed user weight 225 kg 496 lbs maximum patient weight
User Interface
English user interface
User interface available in English language
Norwegian user interface
User interface available in Norwegian language
Czech user interface
User interface available in Czech language
Danish user interface
User interface available in Danishlanguage
Dutch user interface
User interface available in Dutch language
Finnish user interface
User interface available in Finnish language
French user interface
User interface available in French language
German user interface
User interface available in German language
Italian user interface
User interface available in Italian language
Japanese user interface
User interface available in language
Korean user interface
User interface available in Korean language
Polish user interface
User interface available in Polish language
Portugese user interface
User interface available in Portugese language
Russian user interface
User interface available in Russian language
Spanish user interface
User interface available in Spanish language
Turkish user interface
User interface available in Turkish language
Ukrainian user interface
User interface available in Ukrainian language
Connectivity
Optional USB connector
connection via USB possible
Optional RS232 connector
optional connection via RS232
Dimensions
Screen resolution 800 x 400 pixels Screen resolution
Walking surface length 170 cm 66.9 inch length of the walking surface
Walking surface width 60 cm 23.6 inch width of the walking surface
Step up height 17 cm 6.7 inch height to step up the treadmill
Product length (cm) 235 cm 92.5 inch length of product in cm
Product width (cm) 90 cm 35.4 inch width of the product in cm
Product height 130 cm 51.2 inch height of product
Product weight 200 kg 440.9 lbs the weight of the product
Power requirements
Power cord length 250 cm 98.4 inch length of powercord including plugs
Power cord IEC 60320 C19 with CEE 7/7 plug
European power cord and connector standard supplied with product
Power cord NEMA
NEMA power cord and connector
Maximum rated power input 2500 VA power input
115 V AC 50/60 Hz (2 phases)
when <230V, the treadmill should be connected between two phases
230 V AC 50/60 Hz
operational power
Maximum motor power 1.8 kW the maximum power the motor will consume
Standards & Safety
IEC 60601-1:2005
the product is IEC 60601-1 3rd edition compliant
ISO 13485:2016 compliant
Lode fulfils ISO 13485:2016 requirements
ISO 9001:2015 compliant
Lode fulfills ISO 9001: 2015 requirements
Standard emergency lanyard
an emergency stop with a magnetic lanyard is present
Certification
CE class Im according to MDD93/42/EEC
CE certified
CE class of product with optional SpO2 IIa CE class of product with optional SpO2
CE class of product with optional BPM IIa CE class of product with optional Blood Pressure Measurement
CB according to IECEE CB
CB certified
Environmental conditions
Maximum operational temperature 40 °C maximum temperature at which the device will work within specification
Minimum operational temperature 14 °C minimum temperature at which the device will work within specification
Maximum operational air pressure 106 kPa maximum air pressure as from which the product will be operating within specification
Minimum operational air pressure 70 kPa minimum airpressure as from which the product will be operating within specification
Maximum operational non-condensing humidity 90 % maximum non-condensing humidity at which the product will operate within specification
Minimum operational non-condensing humidity 30 % minimum non-condensing humidity at which the product will operate within specification
Maximum storage & transport temperature 70 °C maximum temperature the product may be stored or transported at
Minimum storage & transport temperature -25 °C minimum temperature the product may be stored and transported at
Maximum storage & transport air pressure 106 kPa maximum air pressure the product may be stored and transported at
Minimum air pressure storage & transport 50 kPa minimum air pressure the product may be stored or transported at
Max. humidity storage & transport 95 % max. non-condensing humidity that the product can be stored or transported at
Min. humidity storage & transport 10 % minimum non-condensing humidity that the product can be stored or transport at
*Specifications are subject to change without notice.

Accessories

[wcsp_cross_sell orderby=”rand” order=”ASC” product_num=”5″ display_columns=”3″ title=”” product_id=”5821″]

Science

Science

  • Autonomic nervous system activity assessment in recreational half marathon runners
  • Cardiovascular and Coordination Training Differentially Improve Cognitive Performance and Neural Processing in Older Adults
  • COMT gene polymorphisms, cognitive performance, and physical fitness in older adults
  • Condition and body constitution of soccer players in category U19 before and after completing a preparatory period
  • Determination of the vagal threshold and changes of it’s using
  • Effect of allicin on peripheral blood cell dna damage in human body after exhaustive exercise
  • Interobserver variability of ankle-brachial index measurements at rest and post exercise in patients with intermittent claudication
  • Kinematical analysis, pole forces and energy cost of Nordic walking: Slope influence
  • More Automation and Less Cognitive Control of Imagined Walking Movements in High- Versus Low-Fit Older Adults
  • Physical and motor fitness are both related to cognition in old age
  • Running biomechanics in a long-term monitored recreational athlete with a history of Achilles tendon rupture
  • Running with a minimalist shoe increases plantar pressure in the forefoot region of healthy female runners
  • Supplementation with a polyphenolic blend improves post-exercise strength recovery and muscle soreness.
  • The Coordination and Activity Tracking in CHildren (CATCH) study: rationale and design
  • The Effect of Stress and Recovery on Field-test Performance in Floorball.
  • The Influence of Aerobic Power on Repeated Anaerobic Exercise in Junior Soccer Players
  • Validity and Reproducibility of a New Treadmill Protocol: The Fitkids Treadmill Test.

Support

Q - Is it possible to control the Lode ergometers and treadmills with external equipment

Yes, you can find interface sheets for most common devices on the website at the "service" tab of this website. If your device is not present you can ask us to support you. In most cases we can quickly provide you with a solution.

Q - What are the changes in LEM Version 9.4.7 compared to the previous version 9.4.6?

Support for the new Valiant 2 treadmill has been added.

Q - Can I loop Lode rehab products easily?
Yes! It is very easy to create a comfortable rehab setting with Lode rehab products by looping the ergometers:

The first Lode rehab ergometer can be connected to the PC with LCRM with a Lode proprietary network to PC cable (#930930).
The second product up till the last product can be connected to the previous one, a bus network configuration.

The last product always needs a termination plug to avoid interference and loss of data. All Lode rehab products come standard with such a termination plug.

Benefits
- Flawless data connection
- High bandwidth
- No interference of COM ports
- Looping
- Full access of all data in the product to LCRM

Service

Part number
938903
